TG-100E Coulometric Metal Coating Electrolytic Thickness Gauge Inbuilt Printer

HUATEC GROUP CORPORATION
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

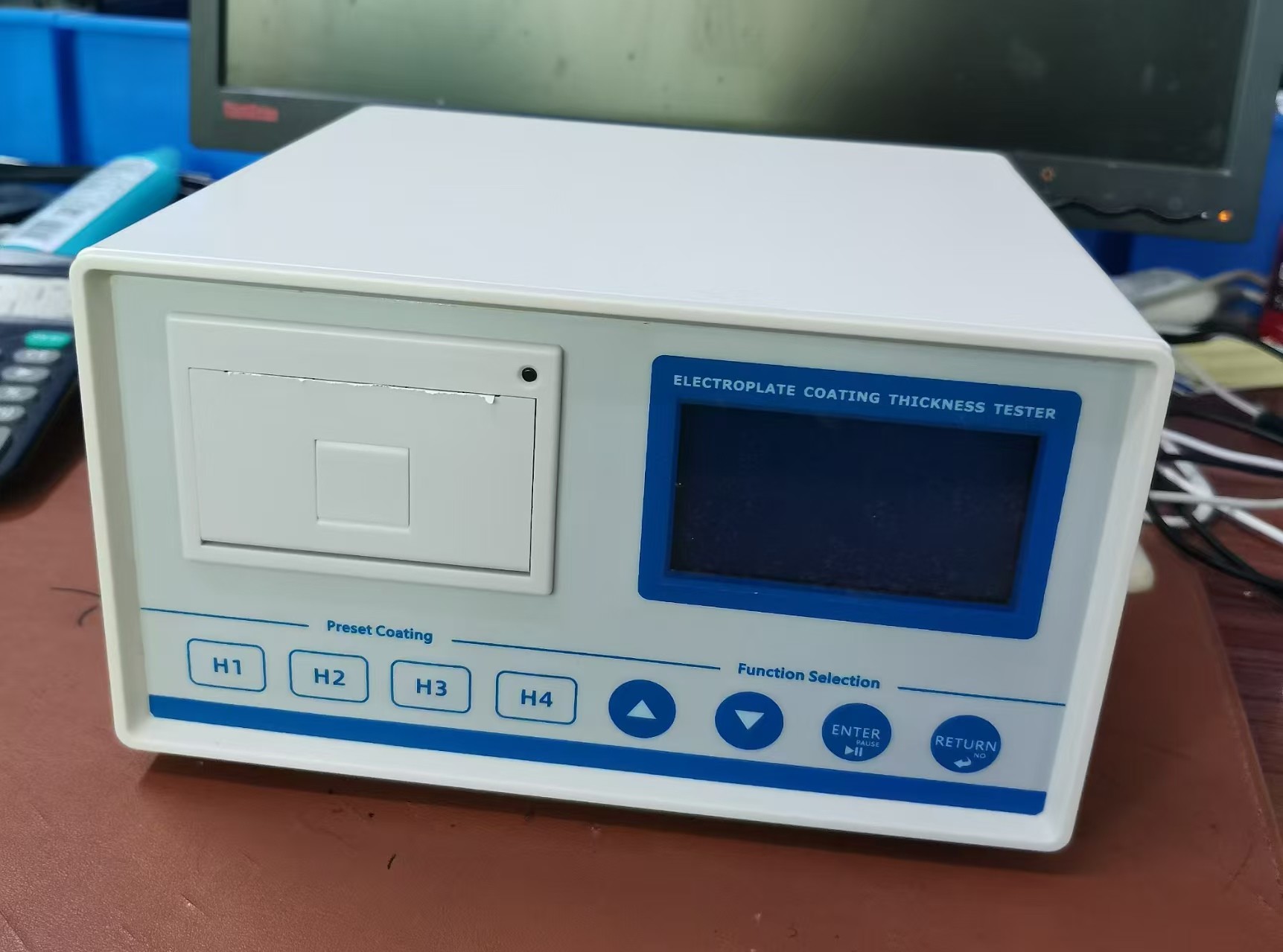

TG-100E Coulometric Metal Coating Electrolytic Thickness Gauge Inbuilt Printer

  • 1
  • 2

Brand Name : HUATEC

Model Number : TG-100E

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD1200/set - USD1365/set

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

Measurement range : 0~50μm

Power consumption : Not more than 25 W

Power supply : AC 220V±10%, 50~60Hz

error : ≤±10%

Contact Now

TG-100E Coulometric Metal Coating Electrolytic Thickness Gauge Inbuilt Printer

FEATURES

  • Permits measurement of thickness of single layer of electroplating metals
  • The preset standard plating types are: decorative chromium, hard chromium, nickel, copper (copper on iron or non-metallic substrate), zinc, tin, silver, and gold 8 plating types. If you want to test other plating types, you must modify the preset plating types. For example, if you need to test electroless nickel (customers may not test silver), you can change silver to electroless nickel.
  • Permits measurement of thickness of individual layers of multi-layer electroplated coatings
  • Permits measurement of thickness of electroplated coatings on non-conducting materials such as plastics
  • Digital display permits easy and accurate direct readings of measured thickness in the decimal system
  • Equipped with a miniature printer, which can automatically print plating species, thickness and test time
  • Potential difference cannot be measured
  • Designed for use in accordance with the standard testing procedures conforming to the ISO Specification

SPECIFICATIONS

Power supply AC 220V±10%, 50~60Hz
Power consumption Not more than 25 W
Gross weight About 9 kg
Size of package 370×440×230(mm) for the tester body
Measurement range 0~50μm error: ≤±10%

Detailed list:

TG-100E tester body 1

Potential testing stand 1

The signal cable for potential transducer 1

Electrolysis cell 1

Gasket 1

Electrolysis solutions A2, A4, A5, A8 1

Rubber 1

Portioning bottle 2

Nipper 1

Instruction, guarantee card 1

TG-100E Coulometric Metal Coating Electrolytic Thickness Gauge Inbuilt PrinterTG-100E Coulometric Metal Coating Electrolytic Thickness Gauge Inbuilt Printer
