Magnetic Particle Flaw Detector Accessories Adjustable UV Headlamp
Main features
A new palm-sized, hands-free light source that can be worn on the head with a UV helmet type
black light that frees the user's hands during inspections.
Helmet-type black lamp is an ideal test tool for fluorescent magnetic particle and penetration
inspection, mine inspection, etc.
The DG-3101S UV headlamp is equipped with the powerful UV-A (365 nm) LED lamp design.
The on/off button of the DG-3101S UV helmet type black light is positioned on the back of the light
to prevent accidental switching; DG-3101S UV helmet type black light specially designed.
Constant current drive line, can keep the UV intensity constant, even when the battery capacity is
insufficient.
DG-3101S UV helmet type black light head can be 90 degrees up-and-down adjustment.
Technical parameter
1,Peak wavelength:365-370nm;
2,Ultraviolet intensity:10000μW/ cm distance is 38cm;
3,UV LED quantity:1× 5W 365nm UV LED,LED The average life span is 30,000 hours;
4,Power:2pcs of 18650 Lithium battery,4400mAh,Usage time: 3.5 hours
5,Irradiated area:_50mm at a distance of 38 centimeters
6,Dimension:40 ×38mm,weight:200g no accessories
Helmet type black light product application
▪ Refrigerant leak detection
Penetration testing, fluorescence detection
▪ Engine oil leak detection
▪ Forensics fingerprints, blood observations
▪ Fluorescence observation of ore
Biopolymers, fluorescence observation

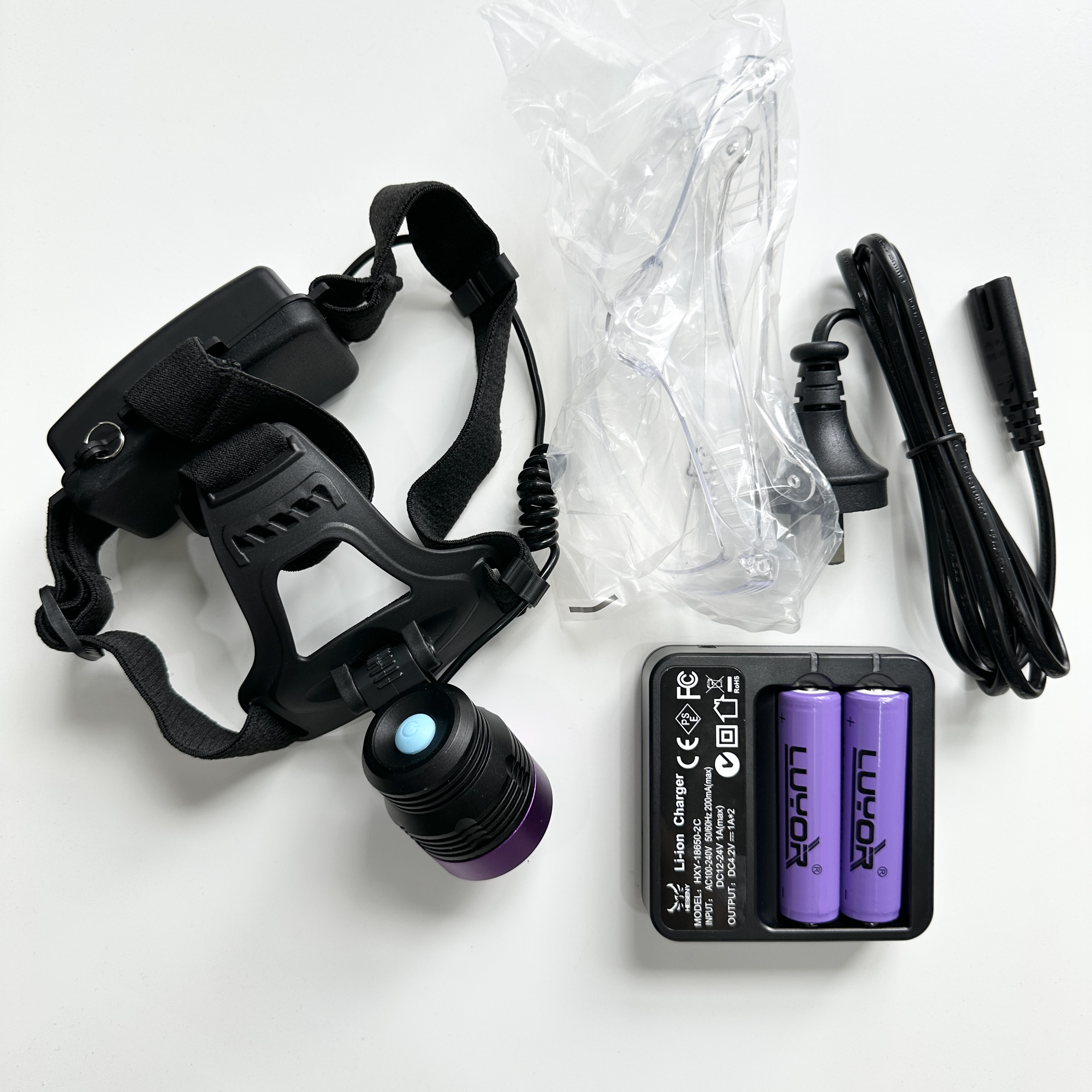

Helmet type black light product standard configuration
Host, a pair of LUV-10 glasses, charger, manual, certificate, warranty card
Product Tags:
|
|

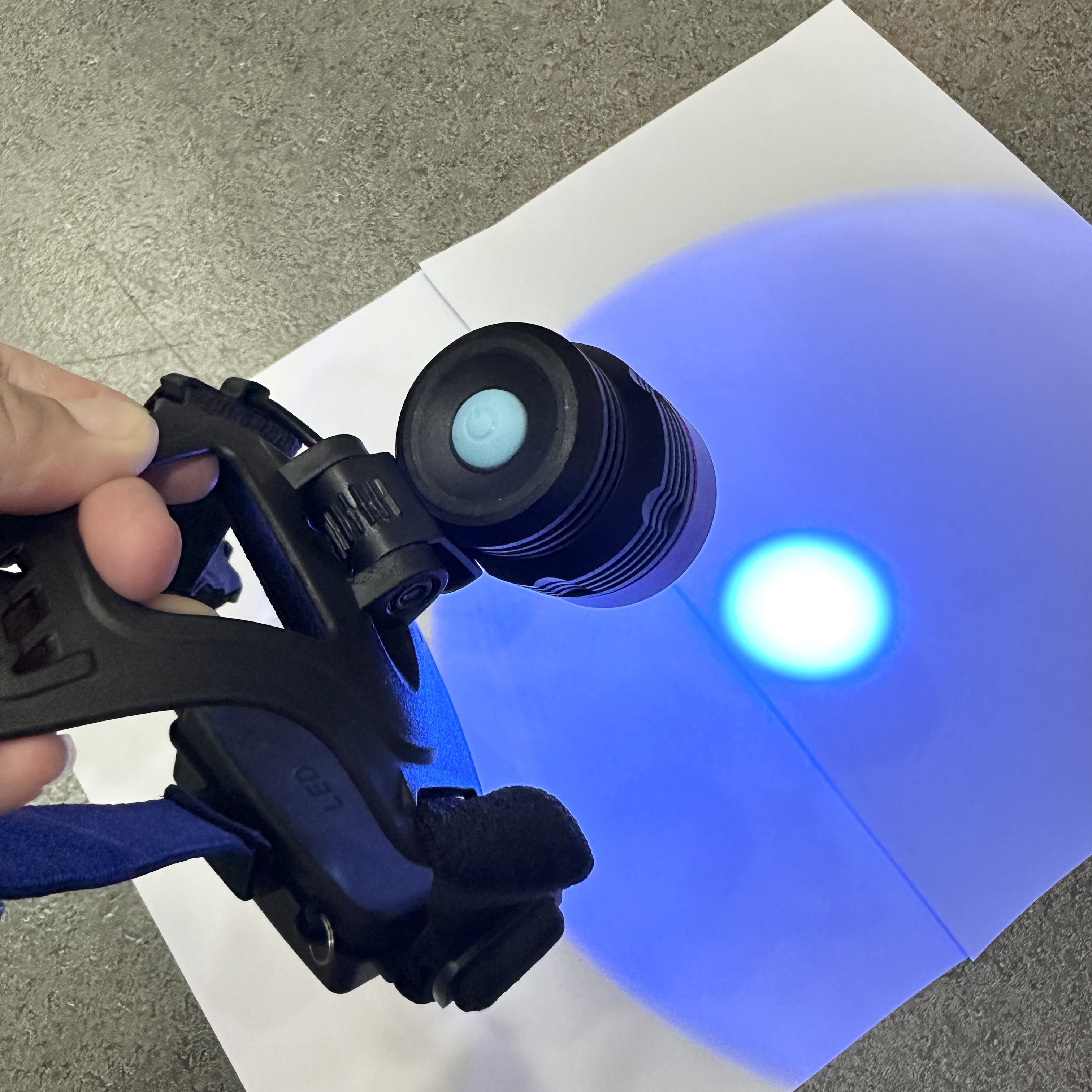

Magnetic Particle Flaw Detector Accessories Adjustable UV Headlamp Images
|
