TG-8829FN Car Industry Dry Film Coating Thickness Gauge

Name: TG8829FN Car Industry Dry Film Coating Thickness Gauge
Brand: HUATEC
Price: 212 USD

Wholesale TG-8829FN Car Industry Dry Film Coating Thickness Gauge from china suppliers

Brand Name : HUATEC

Model Number : TG-8829FN

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD212/set - USD240/set

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

Measuring range : 0-1250um/0-50mil

Resolution : 0.1/1

Accuracy : ±1-3%n or ±2.5um

Min. measuring area : 5mm

Min. sample thickness : 0.3mm

Operating conditions : 0-+45℃(32℉-104℉),≤90%RH

Contact Now

TG-8829FN Car Industry Dry Film Coating Thickness Gauge

Description:
Operating principle: magnetic induction/eddy current (F/NF)
With separate probe(s)

Auto power off

Application:
1. Coating thickness gauge TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-8829N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Measuring range	0-1250um/0-50mil
Resolution	0.1/1
Accuracy	±1-3%n or ±2.5um
Min. measuring area	5mm
Min. sample thickness	0.3mm
Battery indicator	low battery indicator
Metric/ imperial	convertible
Power supply	4x1.5V AAA(UM-4)battery
Operating conditions	0-+45℃(32℉-104℉),≤90%RH
Dimensions	124x62x30mm
weight	115g

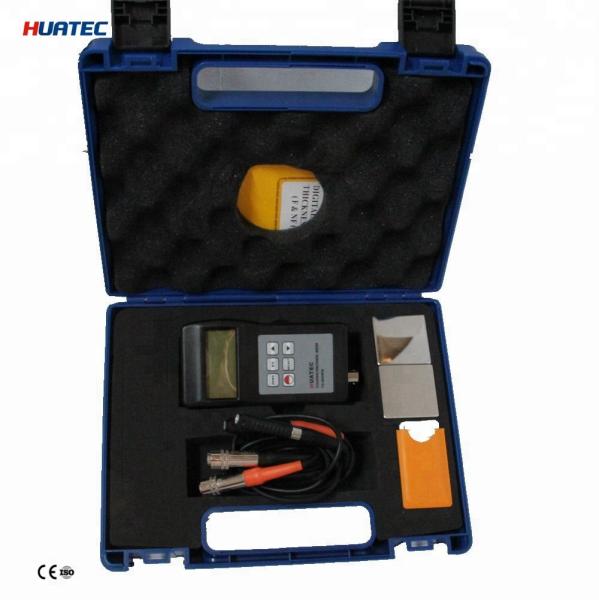

Standard Delivery:
Main unit 1
F type probe 1
N type probe 1
F calibration base set 1
N calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1

Optional Accessories:
Cable and software for RS-232C
Customized testing range
