HC-350YAT Automatic Metallographic Sample Cutting Machine
1, Product features
*Adopt advanced single chip microcomputer PLC automatic control to realize automatic cutting;
*Built in 9 cutting modes. According to the soft and hard degree of the sample material, for nine corresponding cutting parameters, these parameters can be modified and saved;
*In the automatic working state, it can feed and retreat automatically, and the speed of feed and retreat can be set;
*The innovative vibration (feed back feed) cutting mode makes the cutting part of the sample cool enough to ensure that the cut sample will not be burned;
*It can be operated completely by hand and is not affected by automatic mode;
*Sample and cutting piece can move independently (double Y-axis), cutting sample size is larger and more flexible (option)
*Fast clamping mechanism, easy to install sample;
*Adopt totally closed structure, transparent protective cover, increase observation field of vision, up and down opening and closing mode is simple and easy, does not occupy space;
*Super circulation cooling system makes the workpiece not burn when cutting. There is a filter screen in the water tank, which is easy to collect the residue;
*The main parts such as jaw and worktable are made of stainless steel with long service life;
*Emergency stop, air switch and other multiple protection switches provide safety protection for the operator.
2, Technical parameters
| Name | Specifications |
| Cutting blade | 350*2.5*32 |
| Spindle speed | 2800r/min |
| Feed rate | 0.01-3mm/s adjustable |
| Cutter stroke (Y-axis) | 220mm |
| Theoretical maximum cut sample | φ100mm Round stick |
| Maximum fixture clamping distance | 128mm |
| Table size | 333mm*240mm |
| Cutting fixture | Quick push-pull type, jaw height 60mm |
| Key control | LCD touch screen, button |
| lighting | LED light |
| cooling system | Four cooling water and one cooling water gun |
| Circulating water tank | External circulating filter water tank 40L (optional magnetic filter water tank) |
| electric machinery | power:4KW |
| Emergency braking device | Emergency stop switch |
| Power Supply | AC380V 50HZ |
| Dimensions | 960*890*725mm,Foundation Center distance 830*710mm |
| weight | 200KG |
3, Standard accessories
| Name | Quantity | Name | Quantity |
| Automatic metallographic cutting machine HC-350YAT | 1 set | Drain Φ60 | 1 pc |
| Cooling water tank | 1 set | Larynx hoop 52-76 | 1 pc |
| Superhard killer chip(350*2.5*32) | 2 pieces | Cutting lubricant | 1 bucket(4L) |
| Wrench 22-24 | 1 pc | Spindle stop bar | 1 pc |
| Wrench 14-17 | 1 pc | Inner six angle M4 | 1 pc |
| Inner six angleM6 | 1 pc | | |
| Technical documents: product specification 1 copy,and product certificate 1 copy |

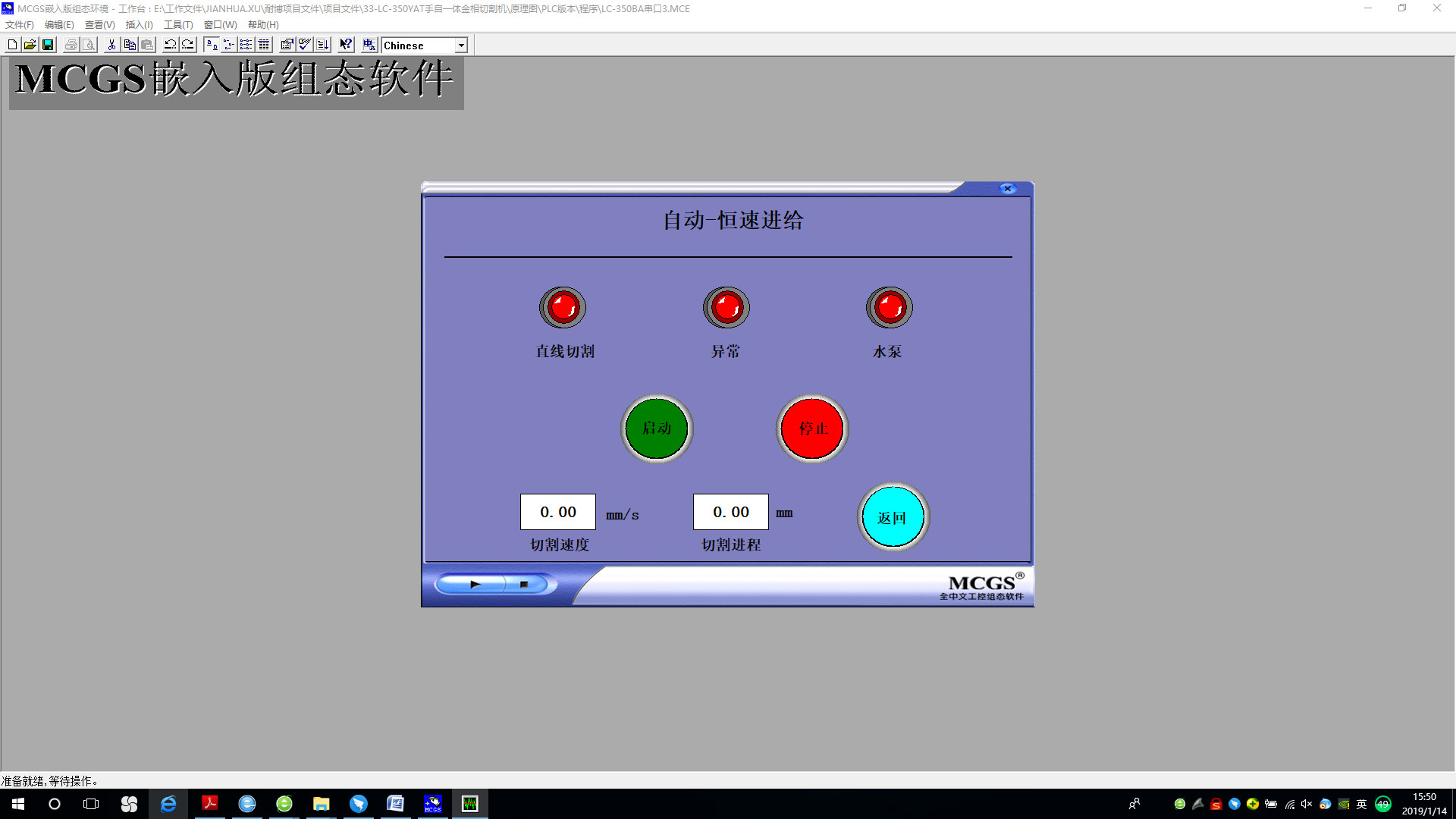

4,Partial touch screen interface
