TG7520 Pressure Vessels Corrosion Coating Thickness Gauge

Name: TG7520 Pressure Vessels Corrosion Coating Thickness Gauge
Brand: HUATEC
Price: 175 USD

Wholesale TG7520 Pressure Vessels Corrosion Coating Thickness Gauge from china suppliers

Brand Name : HUATEC

Model Number : TG7520

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : USD175-USD195/SET

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10 Sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Outer carton packaging

Measuring range : 0-2000um

Resolution : 0.1/1

Accuracy : ±5%n or ±5um

Min. measuring area : 6mm

Min. sample thickness : 0.3mm

Operating conditions : 0-+45℃(32℉-104℉),≤90%RH

Contact Now

TG7520 Pressure Vessels Corrosion Coating Thickness Gauge

Product synopsis

Application: used for measuring thickness and corrosion of pressure vessels, chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station, and machine manufacturing.

Operating principle	magnetic induction (F)
Measuring range	0-2000um
Resolution	0.1/1
Accuracy	±5%n or ±5um
Min. measuring area	6mm
Min. sample thickness	0.3mm
Metric/ imperial	convertible
Battery indicator	low battery indicator
Operating conditions	0-+45℃(32℉-104℉),≤90%RH
Power supply	4x1.5V AA (UM-3)battery

Auto power off

Dimensions: 160x68x32mm

Weight: 210g(not including battery)
Optional accessories: other range 0-200um to 10000um

TG7520 Pressure Vessels Corrosion Coating Thickness Gauge

Product Tags:

Pressure Vessels Thickness Gauge

Corrosion Coating Thickness Gauge

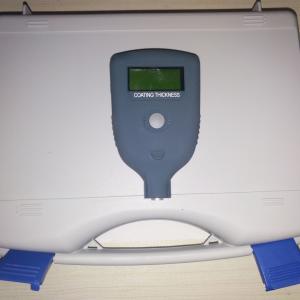

TG7520 Pressure Vessels Corrosion Coating Thickness Gauge Images
