TG-8010 laboratory Coating Thickness Gauge
1.FEATURES
* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel,copper, zinc, aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer,copper tile, aluminum tile, some alloy tile, paper etc.
* The N probes measure the thickness of n o n - m a g n e t i c c o a t i n g s o n n o n -m a g n e t i c m e t a l s . I t i s u s e d o n anodizing, varnish, paint, enamel, plastic coatings, powder,etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous
* Wide measuring range and high resolution.
* Metric/Imperial conversion.
* Digital backlit display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Can store 99 groups of measurements.
* Statistics is available.
TECHNICAL DATA
| Display |
4 digits LCD, backlit |
| Measuring range |
0~1250 μm/0~50mil(other ranges can be specified )
|
| Min.radius workpiece |
F: Convex 1.5mm/Concave 25mm
N: Convex 3mm/ Concave 50mm |
| resolution |
0.1 μm (0~99.9μm);1 μm (over 100μm) |
| Min. measuring area |
6 mm |
| Min.Sample thickness |
0.3mm |
| Accuracy |
±1~3%n or 2.5 μm or 0.1mil(Whichever is the greater) |
| Bttery Indicator |
Low batter indicator |
| PC interface |
with RS-232C interface |
| Power supply |
2x1.5 AAA(UM-4) battery |
| Operating condition |
Temp. 0~50℃ .Humidity <95% . |
| Size |
126x65x35 mm; 5.0x2.6x1.6 inch |
| Weight |
about 81g(not including batteries) |

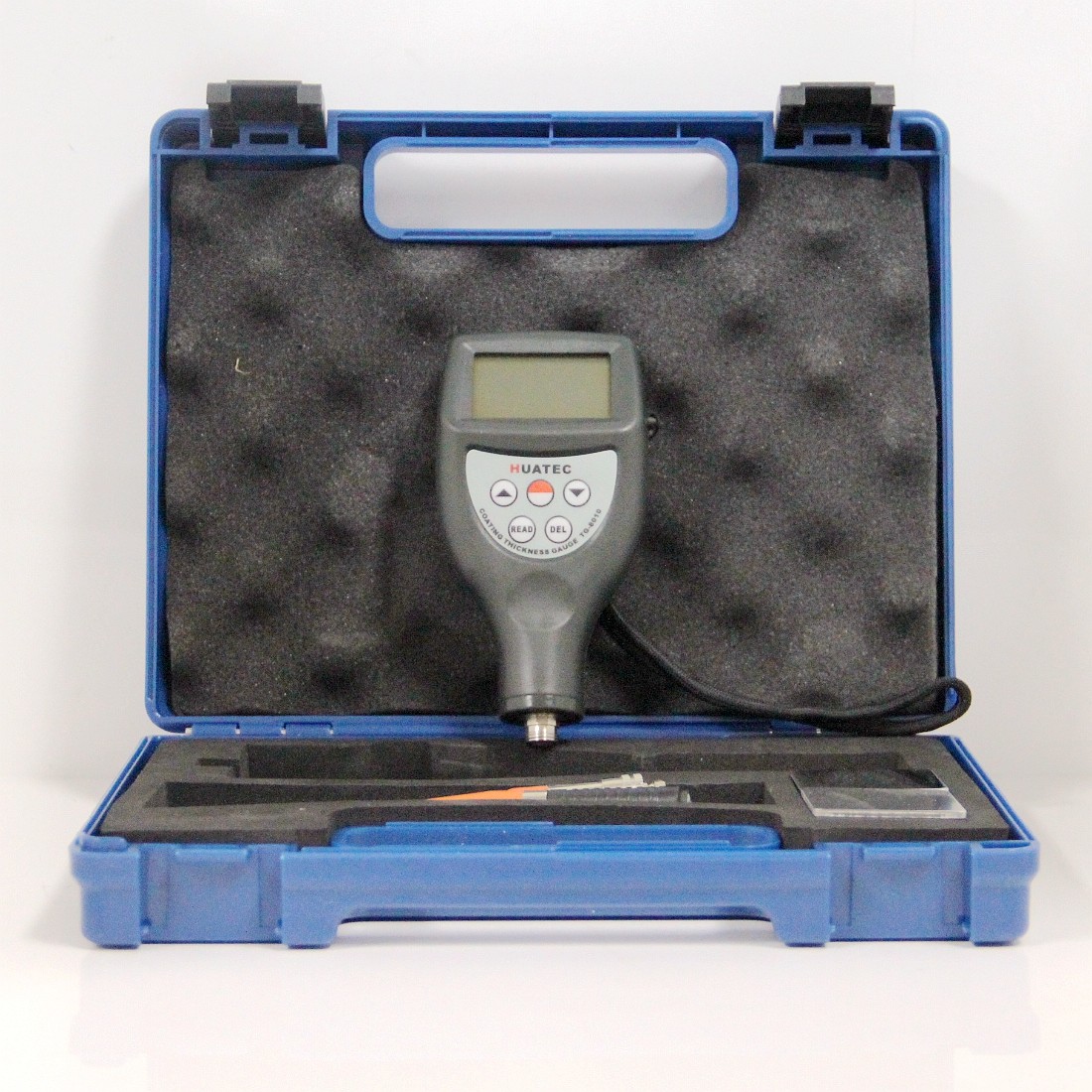

Standard accessories:
Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.
Optional accessories:
RS-232C cable & software:
1.USB adaptor for RS-232C
2.Bluetooth interface
