TG4100B High Precision Thin piece Ultrasonic Thickness Gauge
Usage
Widely used to measure the thickness of metal materials. Especially display its advantage for measuring the thin piece and high precision measuring. What’s more, it can also through the thin coating layer and paint layer, and also be used to measure ultra thin wall with paint layer like fire extinguisher.
TECHNICAL DATA
| Display |
128X64 Pixel LCD with backlight |
| Measuring range |
0.8 mm-- 300.0 mm in steel depending on the probe
Special request can reach measuring range up to 500mm
|
| Tolerance |
+/-0.05 mm in steel |
| Display resolution |
0.01mm |
| Built-in standard block |
4.00 mm |
| Memory |
500 datas in 5 groups, memory does not lose after powering off |
| Velocity range |
1000-9999 m/s |
| Power |
2 pcs 1.2 V AAA batteries |
| Outside dimension |
149X73X32 mm |
| Net Weight |
160 g |
FEATURES
Probe Zero Adjustment:
Selectable: 1-point calibration: normal measurement
2-point calibration: curve surface measurement or other special application with a high precision
V-Path Correction: Automatic
Automatic self-calibration
Couplant indicator
Automatic power off in 5 minutes and manual power off function
High-low limit alarm
LCD brightness adjustable
Measurement Update rate: 4 Hz
Minimum value scanning (MIN Capture mode): catch the minimum value during the measurement.
Can modify systematical errors by using the 4mm standard block on the instrument.
Low battery indicator
Metric/imperial optional
Dataview for PC communication
STANDARD DELIVERY
TG4100B main unit
Hard carrying case
Couplant bottle
Standard 8 mm, 5 MHz probe PT-08 with cable
OPTIONAL ACCESSORIES
4 steps steel test block
7 steps metrics steel test block
5 MHz, 4 mm contact probe
10 MHz, 4 mm, contact probe
5 MHz high temp. probe
Probe cables
Water proof housing
Dataview CD and communication cable optional
Product Tags:
|
|

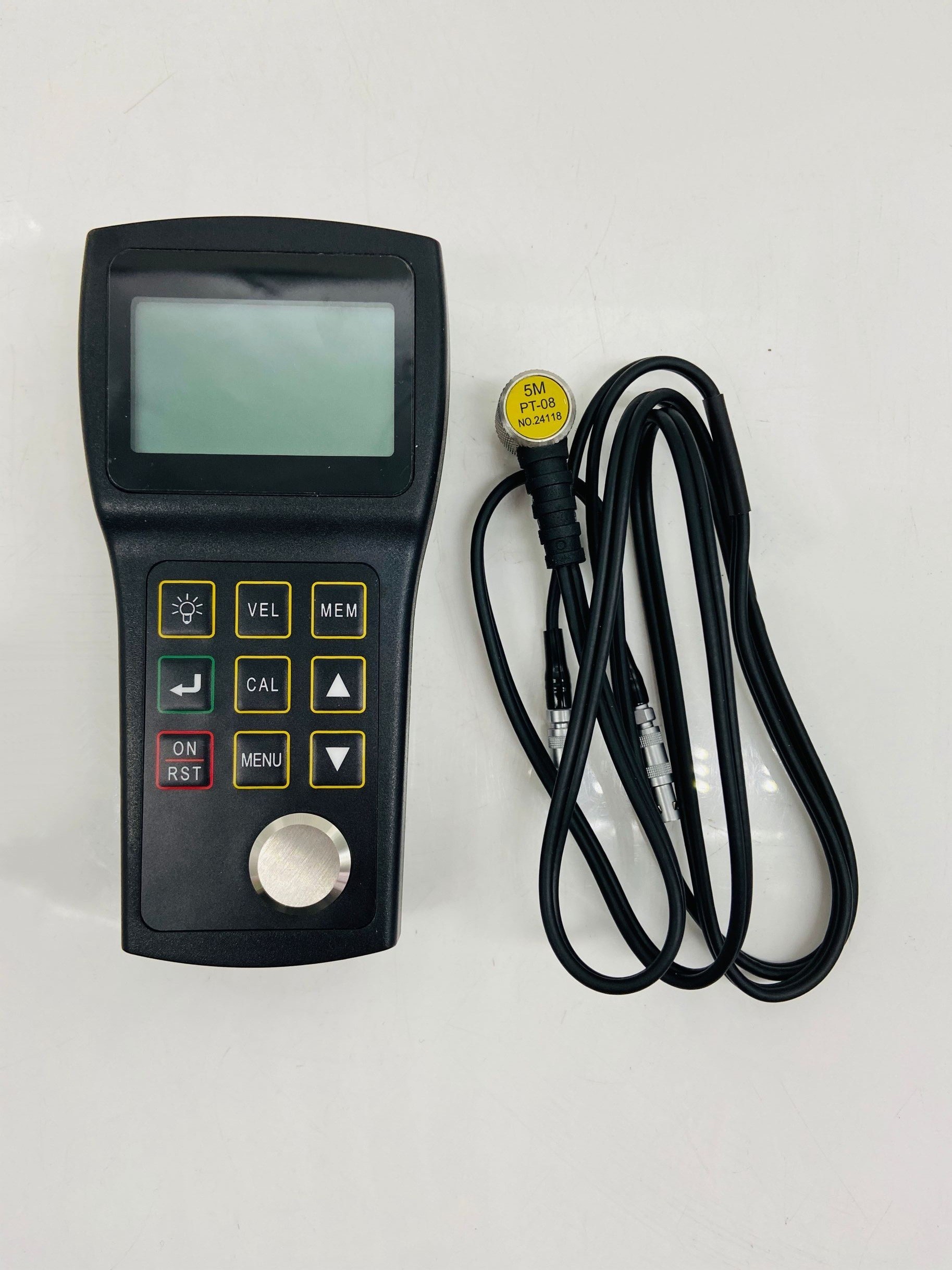

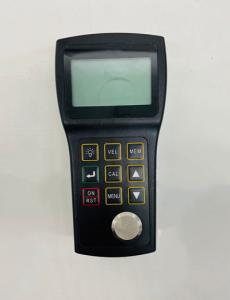

TG4100B High Precision Thin Piece Ultrasonic Thickness Gauge Images
|
