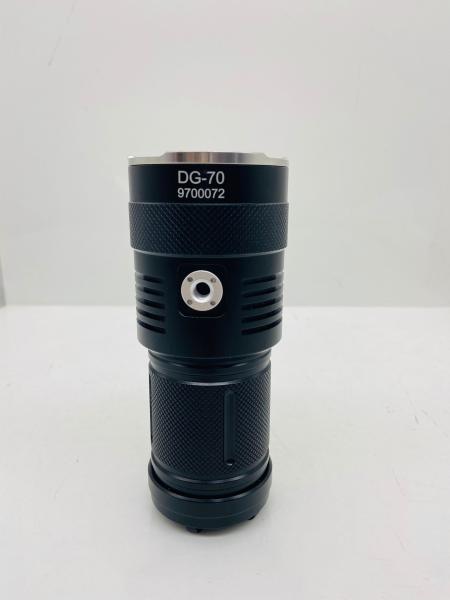

DG-70 Portable 365nm Ultraviolet Band LED Lamp

  • 1
  • 2

Brand Name : HUATEC

Model Number : DG-70

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD632/set - USD715/set

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

Input Voltage : 3.7-4.2V

Output Power : 9W

Intensity of Ultraviolet Ray at 38cm Distance : ≥20000 uW/cm2

Irradiated Area at 38cm Distance : ￠80mm

Diameter of Light Inlet Window : ￠50

Battery Capacity : 2600mAh

Charging Time : ≥5H

Working Hours : ≥5H

Contact Now

DG-70 Portable 365nm Ultraviolet band LED Lamp

1· Introduction

DG-70 pocket lamp type LED Ultraviolet Lamp is professional portable UV Lamp researched and developed by our company. A complete range of specifications of UV Lamp can meet different requirements. The series possesses ultra-high brightness, long working hours and stable quality etc., and it conforms the National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015).

The National Pressure-bearing Equipment NDT Standard (NB/T 47013-2015) requires Black Light Lamp / Ultraviolet Lamp as follows:

  1. Exposure intensity on the workpiece surface must be greater or equal to 1000 uW/cm².
  2. The wavelength should be 315nm~400nm, and the peak value wavelength should be 365nm.
  3. Light source should meet the specification of GB/T5097.

2.Technical Parameters


Model

 DG-70
Lamp Beads NICHIA 365nm Ultraviolet band LED Lamp Beads
Lamp Bead Amount 3
Input Voltage 3.7-4.2V
Output Power 9W
Intensity of Ultraviolet Ray at 38cm Distance

≥20000 uW/cm2
Irradiated Area at 38cm Distance ￠80mm
Diameter of Light Inlet Window ￠50
Battery Model ICR 18650
Battery Capacity 2600mAh
Number of Battery 4
Charging Time ≥5H
Working Hours ≥5H
Battery Life More than 500 time for fully charge and discharge
Outline Dimension A ￠60 mm
B ￠50 mm
L 143 mm
Weight(including Battery) 610g

3. Main Application

  1. Fluorescence Penetrate Testing
  2. Fluorescence Magnetic Particle Flaw Detection
  3. Fluorescence Leak Detection

Other Application

  1. Oil Stain, Blot Testing
  2. Special Gas, Oil and Gas Pipeline Testing
  3. Fluorescence Reflection Detection for Special Materials
  4. Criminal Investigation and Legal Medical Expert Survey
  5. Paper Money Authentication, Jewel Appreciation
  6. Agriculture, Foodstuff, Medical Treatment and other relevant industries.

4. Characteristic and Performance

  1. HUATEC DG-70 adopts high-power 365nm Ultraviolet band LED Lamp

Beads produced by Japanese NICHIA company, 100% free from UV-B and UV-C element, spectrum is pure.

  1. The lifetime of Lamp Beads reach up to 20000 hours, efficient, energy conservation and environmental protection.
  2. Quick Start, can reach the maximum illuminance as soon as switch on.
  3. Ultra-low power consumption,high efficiency.Stand-by time is far more than likewise products.
  4. Cold light source makes cold operation, outputs the illuminance lasted and steadily.
  5. Optical filter is black vitaglass.
  6. High strength aviation aluminum alloy shell with anodize surface.
  7. Enhance thermal design, can be used continuous for long time.
  8. Configure dedicated high speed charger for each lamp.
  9. Anti magnetic field interference function makes it possible to work in the strong magnetic field.
  10. Dust prevention and waterproof standards reach IEC 60529- IP66 grade, suit to different environments, more safety and reliable.

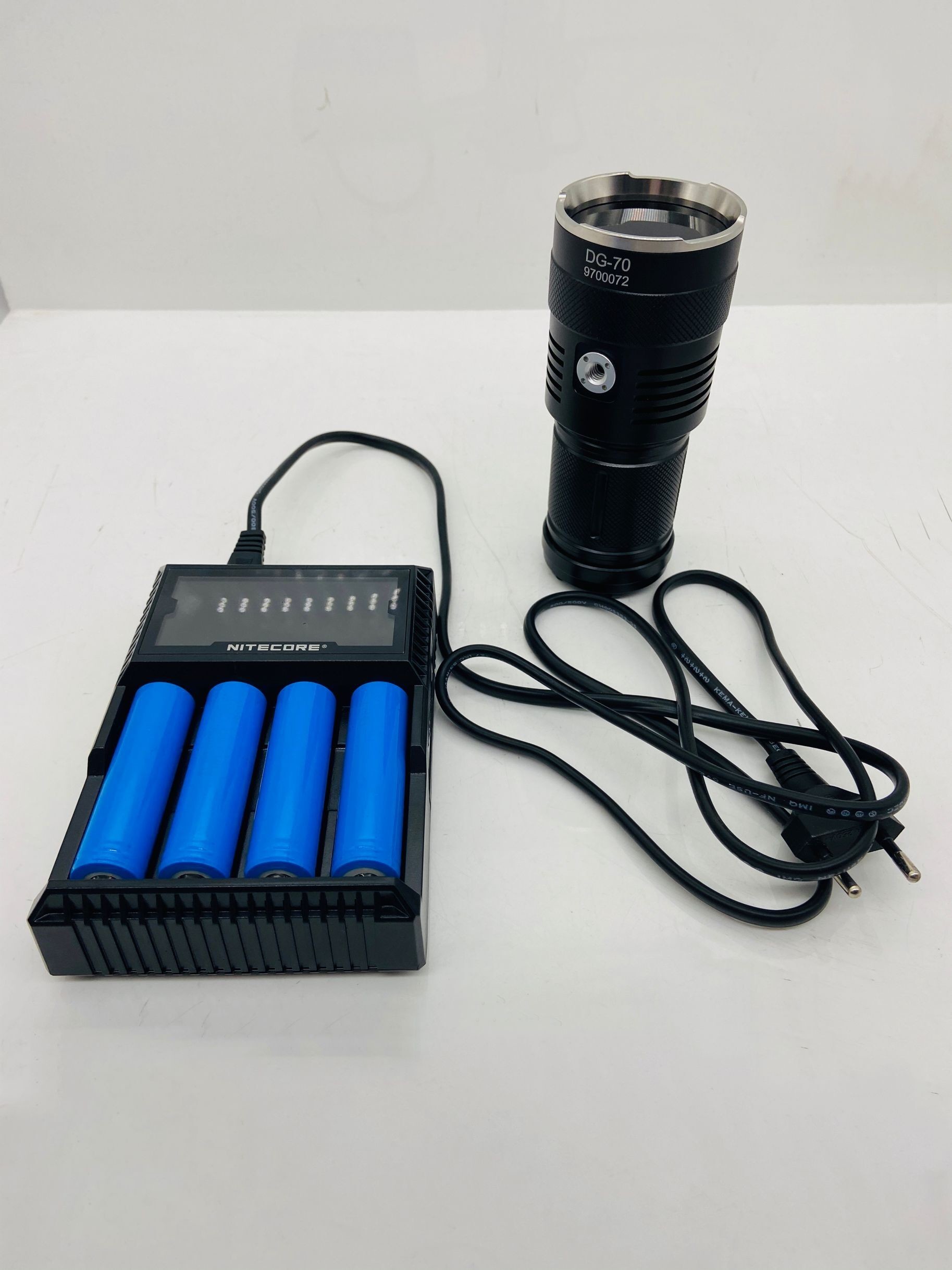

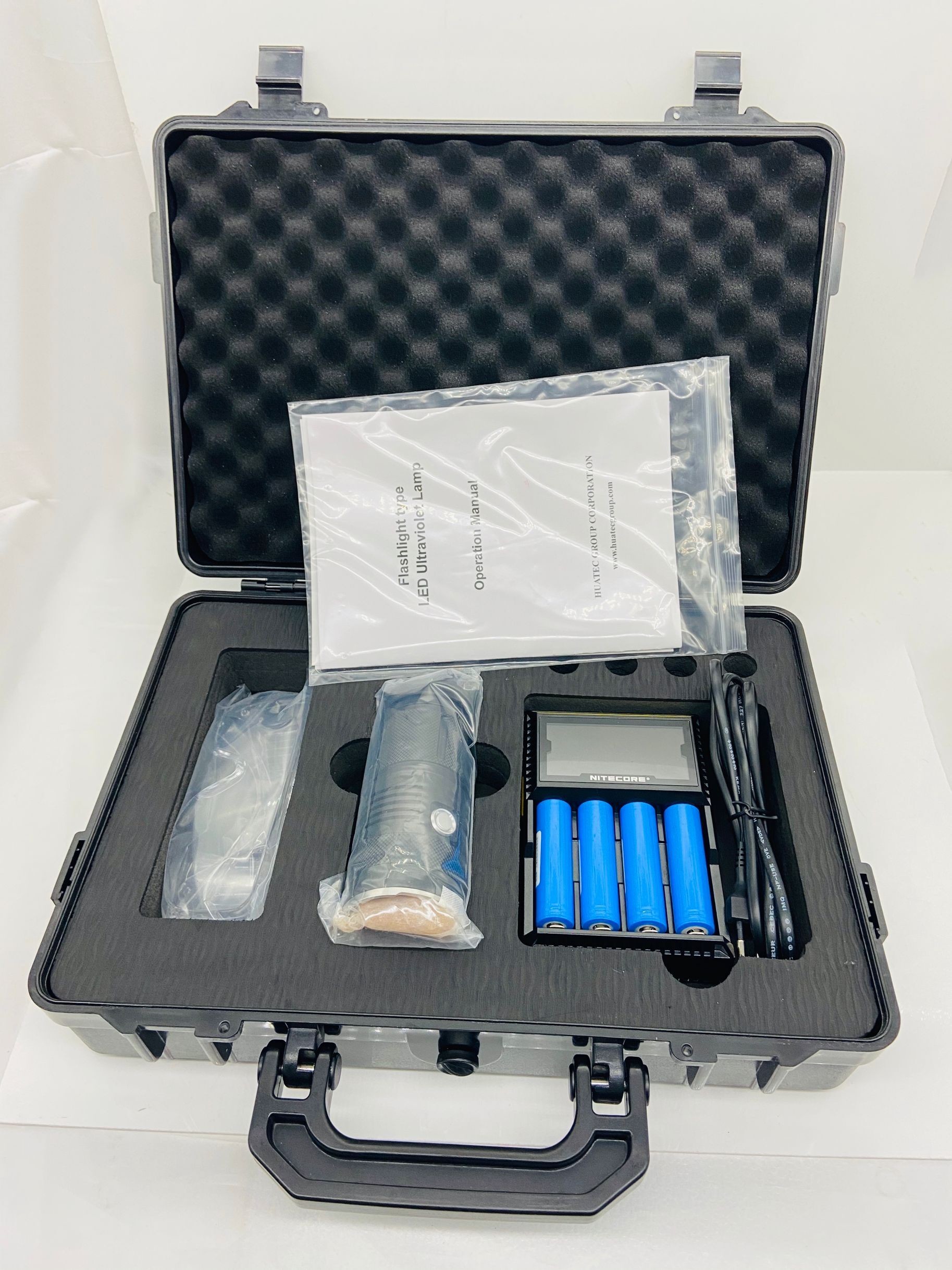

5. Configuration List

DG-70
Main Device 1
Battery 4
Charger 1
Suit case 1
Operating Manual 1
Certification 1
Warranty Card 1
Packing List 1

Optional Configuration

Protective Glass

Triangle Holder

DG-70 Portable 365nm Ultraviolet Band LED Lamp

DG-70 Portable 365nm Ultraviolet Band LED Lamp
