HAL-3000 Acoustic Emission Valve Leakage Detector

Name: HAL3000 Acoustic Emission Valve Leakage Detector
Brand: HUATEC
Price: 14940 USD

Wholesale HAL-3000 Acoustic Emission Valve Leakage Detector from china suppliers

Brand Name : HUATEC

Model Number : HAL-3000

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD14940/set - USD16890/set

Payment Terms : T/T,Paypal

Supply Ability : 5sets/Month

Delivery Time : 10-15 working days after receipt of your payment

Packaging Details : Carton packing box

Hardware bandwidth : 10kHz ~ 400kHz

Number of channels : Dual-channel synchronous acquisition

Optional gain : 20dB 40dB 60dB

Optional sampling rate : 500kHz 1MHz 2MHz

Optional sampling points : 2KB 4KB 8KB 32KB

Dual-channel synchronization : Below 0.5μs

Filter range : 10kHz ~ 400kHz

Power supply : Built-in lithium battery, the regular continuous working time is about 8 hours

Host normal operating temperature range : -10~+50℃

Host storage temperature range : 0-+40℃

Contact Now

HAL-3000 Acoustic Emission Valve Leakage Detector

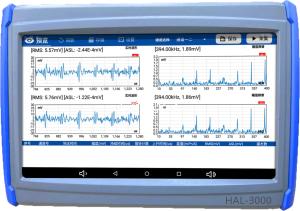

HUATEC HAL-3000 Acoustic Emission Valve (Pipeline) Leak Detector is an acoustic emission detector with dual-channel synchronous acquisition function. It is easy to operate,has high real-time performance and has strong battery life. It is suitable for industrial applications.

Product Features

Simple operation, high real-time performance, strong battery life
With dual-channel waveform detection, each channel will display real-time waveform and amplitude spectrum
There are three different sampling rate and gain options, and there are four optional sampling points
FFT spectrum analysis function, allowing you to view data FFT spectrum information at any time
Built-in 10000mA lithium battery, the normal use time is 8 hours, and it can be charged by power supply
It has a supporting PC-side software for displaying the waveform of the stored waveform data, and can print the word document corresponding to the waveform diagram
Using RMS and ASL as leak detection parameters, the alarm value can be calibrated. If the calibration value is exceeded, an alarm prompt will be given
There is 64GB storage space, with manual and automatic data storage functions, and data information is stored according to the timestamp as the file name
Frequency band filtering can be selected based on actual scenarios

Basic Parameters

Hardware bandwidth	10kHz ~ 400kHz
Number of channels	Dual-channel synchronous acquisition
Optional gain	20dB 40dB 60dB
Optional sampling rate	500kHz 1MHz 2MHz
Optional sampling points	2KB 4KB 8KB 32KB
Dual-channel synchronization	Below 0.5μs
Filter range	10kHz ~ 400kHz
Power supply	Built-in lithium battery, the regular continuous working time is about 8 hours
Host normal operating temperature range	-10~+50℃
Host storage temperature range	0-+40℃
Host weight	0.8kg
Host dimensions	194mm×129.5mm×45mm
Power adapter	DC 5V/4A charging Cable
Data cable	miniUSB data cable
Probe	PN150_M

Standard configuration

NO.	Name	Quantity	Remark
1	Host HAL-3000	1
2	Mini USB data cable	1
3	DC 5V/4A charging cable	1
4	Manual	1
5	Lemo 00- Microdot probe line (1m)	2
6	Memory disk	1
7	Packing box	1
8	Coupling agent	1
9	Probe (PN150_M)	2

HAL-3000 Acoustic Emission Valve Leakage Detector
