HCDX-220S Handheld UV And White Light AC Yoke

Name: HCDX220S Handheld UV And White Light AC Yoke
Brand: HUATEC
Price: 333 USD

Wholesale HCDX-220S Handheld UV And White Light AC Yoke from china suppliers

Brand Name : HUATEC

Model Number : HCDX-220S

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : USD333/set - USD377/set

Payment Terms : T/T,Paypal

Supply Ability : 10sets/Month

Delivery Time : 7-10 working days after receipt of your payment

Packaging Details : Carton packing box

Sensitivity : A1 type standard test film 15/100 grooves display clearly, better than the national standard

Lifting force : AC ≥68.6N (7kg)

Probe pole distance : 60mm-205mm (spacing range is adjustable)

Probe light source : white light illuminance ≥2000Lux; Uv lamp irradiance ≥5000μw/c㎡

Probe volume : 200mm*48mm*158mm

Probe weight : 2.0kg

Contact Now

HCDX-220S Handheld UV and White Light AC Yoke

Application

•Surface and subsurface testing for field testing

•Surface and subsurface for spot inspections

•Surface and subsurface for in-service inspections

•Surface and subsurface for demanding environments

•Surface and subsurface for weld inspection

Technical parameter

Sensitivity	A1 type standard test film 15/100 grooves display clearly, better than the national standard
Lifting force	AC ≥68.6N (7kg)
Probe pole distance	60mm-205mm (spacing range is adjustable)
Probe light source	white light illuminance ≥2000Lux; Uv lamp irradiance ≥5000μw/c㎡
Probe volume	200mm48mm158mm
Probe weight	2.0kg

Functional characteristics

1. AC working mode, the probe can be directly connected to the AC220V power supply for flaw detection work;

2, The lamp is automatically lit when magnetized, the UV and white light can be switched, and the fluorescent magnetic particle detection and ordinary magnetic particle detection can be performed;

3, High sensitivity, strong lifting force, high flaw detection efficiency.

4. Duty time: 5 minutes on,1 minute off

5. Sealed, durable construction

Standards conform

• ASME BPVC

• ASTM E709

• ASTM E1444

• ASTM E3024

• ISO 9934-3

Configuration list

1, D type yoke 1 set (including 3 meters probe line)

2. 1 set of auxiliary tools

3, User manual, warranty card, certificate of 1

4, Instrument box

HCDX-220S Handheld UV And White Light AC Yoke

Product Tags:

Handheld AC Yoke

UV AC Yoke

White Light AC Yoke

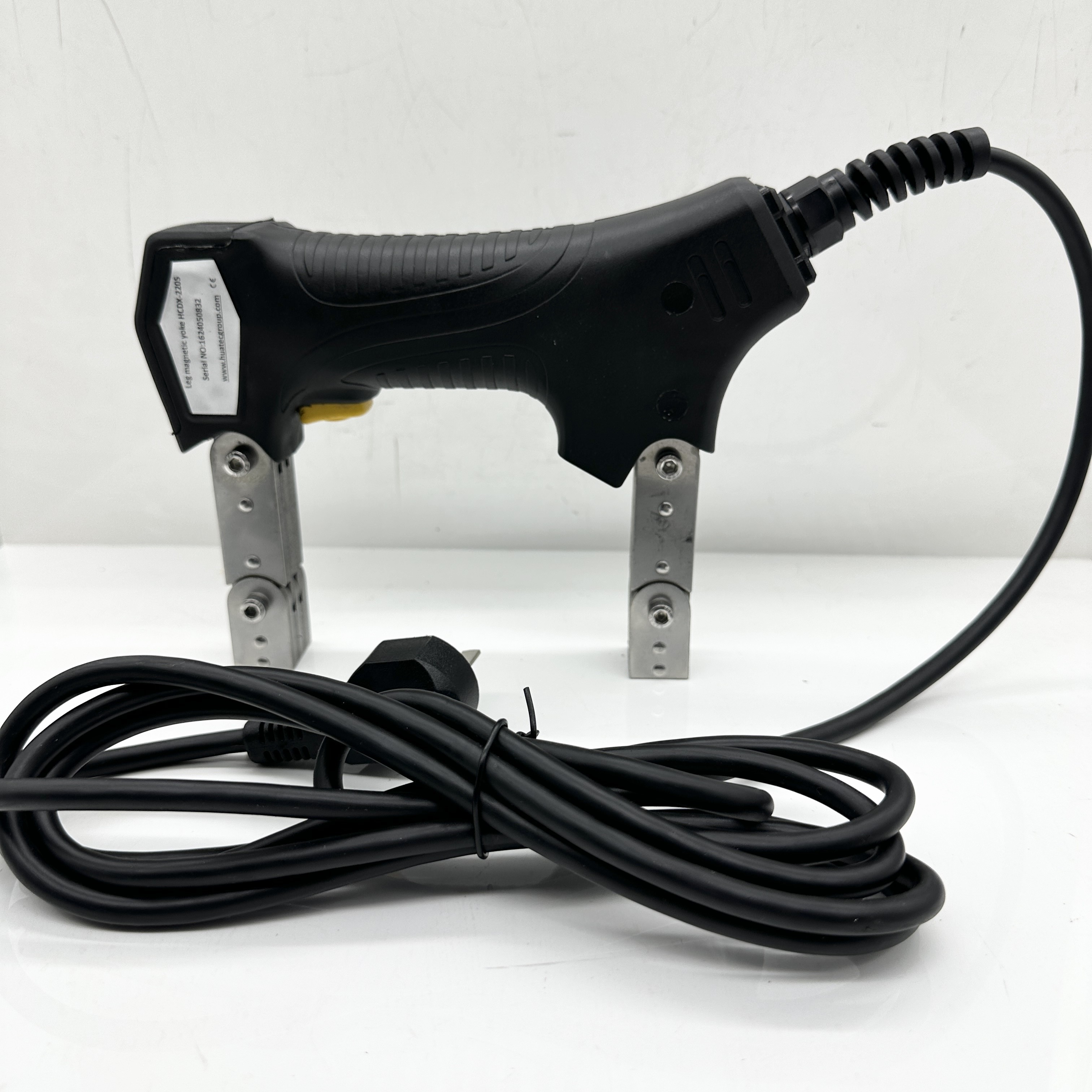

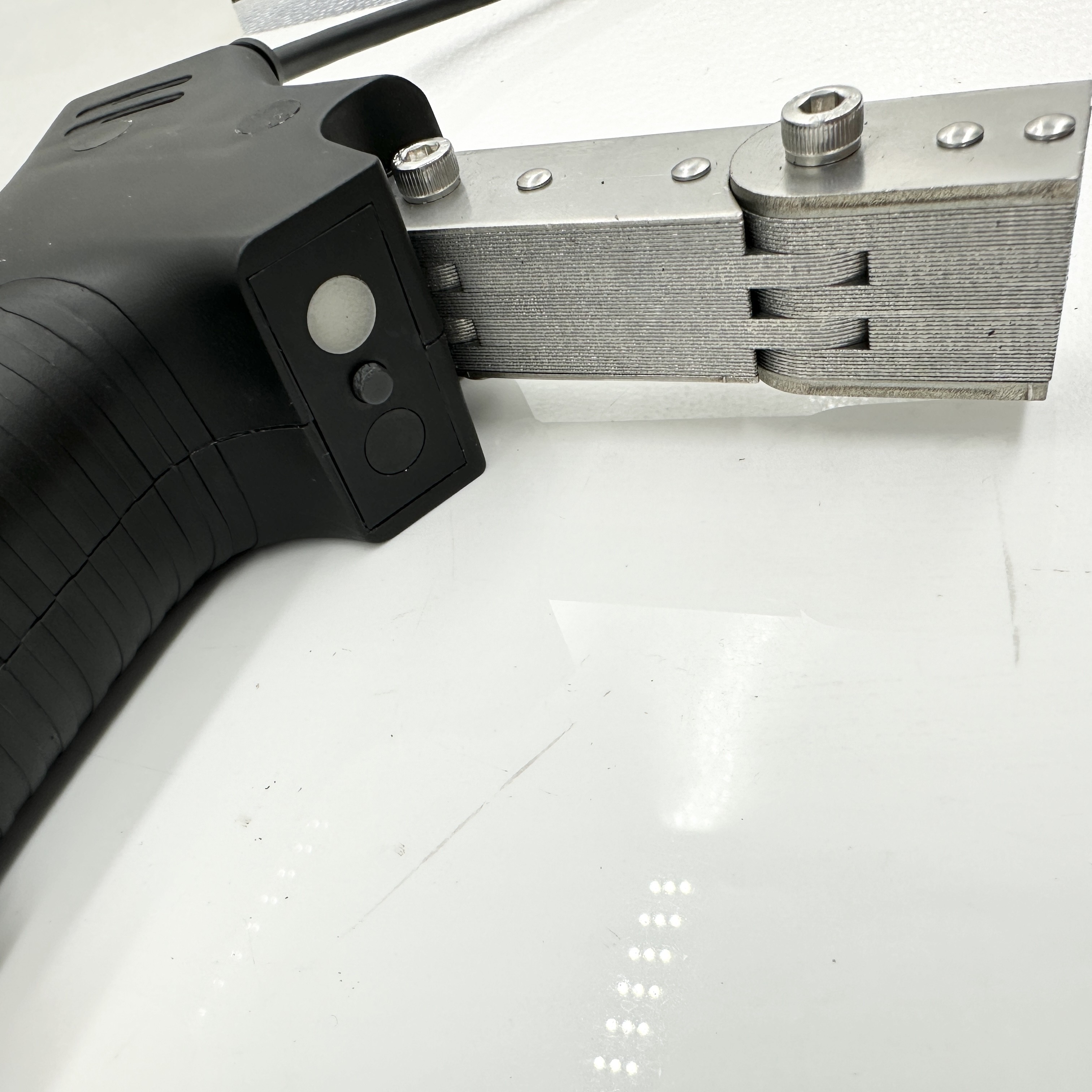

HCDX-220S Handheld UV And White Light AC Yoke Images
