Automated Calibration Ultrasonic Flaw Detector Industrial Carck Tester 0 - 10000mm

Name: Automated Calibration Ultrasonic Flaw Detector Industrial Carck Tester 0 10000mm
Brand: HUATEC
Price: 1 USD

Wholesale Automated Calibration Ultrasonic Flaw Detector Industrial Carck Tester 0 - 10000mm from china suppliers

Brand Name : HUATEC

Model Number : FD350

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Payment Terms : TT, L/C, Western Union

Supply Ability : 300 sets per month

Delivery Time : 3-7 working days

Packaging Details : Carton

Frequency : 0.2 – 20 MHz

Detection range : 0 - 10000 mm

Working methods : Pulse echo, dual, and thru-transmission

Gain adjustment : (0-110) dB, Step:0.2, 0.5, 1.0, 2.0, 6.0, 12.0, user definable(0-24), and locked

Appearance size : 11.9”W x 9.9” H x 2” D (302 x 251 x 51 mm)

Net weight : 5.5 lbs. (2.5 kg) Li-Ion Battery; 4.8 lbs. (2.2 kg) without battery

Contact Now

0-10000mm FD350 industrial carck tester Ultrasonic inspection detector

Automated Calibration Ultrasonic Flaw Detector Industrial Carck Tester 0 - 10000mm

Product Info:
· Automated calibration Automated gain
· Automated make video of test process and play
· AWS D1.1, DAC/TCG, JIS DAC/TCG, AVG, DGS, A scan & B scan
· High-speed capture and very low noise
· Solid metal housing (IP65)
· High contrast viewing of the waveform from bright
· Powerful pc software and reports can be export to excel
· Small size, light weigh model

Main Technical Index:

FUNCTIONS	PARAMETERS
Frequency	0.2 – 20 MHz
Detection range	0 - 10000 mm
Sound velocity	100 – 20000 m/s
Working methods	Pulse echo, dual, and thru-transmission
Pulse Shift	-5 to 3400 μs in steel (dependent on range)
Zero point of the probe	0 – 100 μs
Gain adjustment	(0-110) dB, Step:0.2, 0.5, 1.0, 2.0, 6.0, 12.0, user definable(0-24), and locked
Vertical linear error	≤3%
Horizontal linear error	≤0.1%
Dynamic range	≥40dB
Sensitivity surplus	≥60dB (200mmdepth , Ф2 flat- bottomed hole )
Communications	Connect with computer through RS232 or USB
The average electric yawp	≤20%
Color TFT LCD	5.25”x 3.875” (133 x 98 mm), 640 x 480 pixels VGA, color
Gate alarm	Wave-entering gate / wave-losing gate sound alarm, width, height, location, continuous-tuning
Time of battery working	7 hours
Temperature of working	-10°C-60°C
Power	220VAC, 110VDC
Appearance size	11.9”W x 9.9” H x 2” D (302 x 251 x 51 mm)
Net weight	5.5 lbs. (2.5 kg) Li-Ion Battery; 4.8 lbs. (2.2 kg) without battery

Standard Delivery of Digital Portable Ultrasonic Flaw Detector FD350:
Portable ultrasonic flaw detector main unit
Operating manual
Straight Beam probe
Angle-beam probe(60 degree)
Probe cable
PC software CD
Serial PC cable
AC adapter/charger
Carrying case

Additional Accessories:
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe (Lemo 01-Lemo 00)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Test block V1
Test block V2
Test blocks DAC, ASME etc.

Product Tags:

portable ultrasonic flaw detector

digital ultrasonic flaw detector

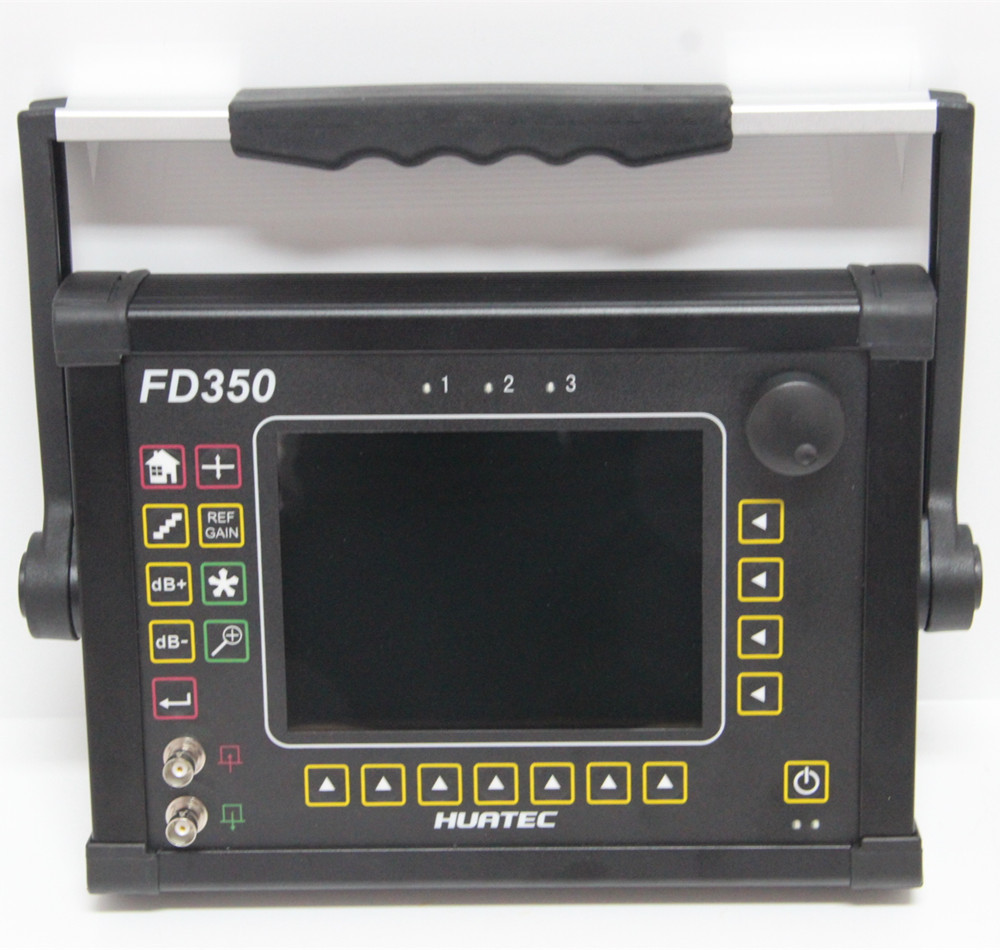

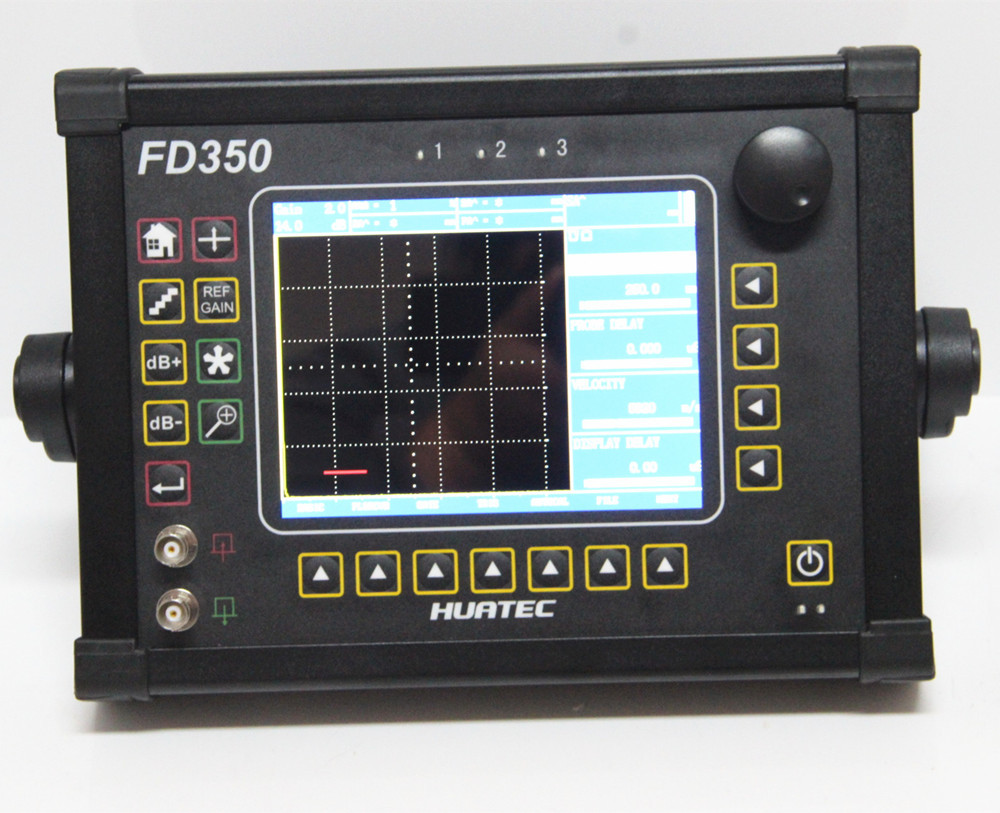

Automated Calibration Ultrasonic Flaw Detector Industrial Carck Tester 0 - 10000mm Images
