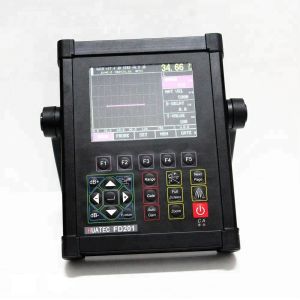

Measuring Range(mm) 2.5~5000 Metal Shell Digital Ultrasonic Flaw Detector FD201B NDT Test
Features for digital ultrasonic flaw detector FD201B:
DAC, AVG curves
AWS function
High-speed capture and very low noise
Gate and DAC alarm;Acoustic-Optical alarm
Solid metal housing (IP65)
High contrast viewing of the waveform from bright
Powerful pc software and reports can be export to excel
1) Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, ф)
2) Automated switch three staff gauge ((Depth d, level p, distance s)
3) Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and
compensated
4) Ten independence setup, any criterion can be input freely, we can work in the scene without
test block
5) Big memory of 300 A graph and 30000 thickness value
6) Automated gain and gain scan, automated echo degree
7) Peak hold and Peak memory
8) Powerful PC software and reports can be export to excel
9) RS232/USB
10) The embeded software can be online updated
11) Li battery, continue working time up to 10 hours
12) Display freeze
13) Lock and unlock function of system parameters
14) Dormancy and screen savers
15) Electronic clock calendar
16) Two gates setting and alarm indication
| Title | Parameter | Title | Parameter |
| Measuring Range(mm) | 2.5~ 5000 | Measurement Mode | Single, Dual, Thru |
| Vertical Linearity Error | ≤3% | Reject | 0~80% |
| Horizontal Linearity Error | ≤0.2% | Pulse Displacement(μs) | -20~+3400 |
| Sensitivity Leavings | >60dB | Zero(μs) | 0.0~99.99 |
| Oynamic range | >32dB | Port Type | BNC |
| Resolving Power | ≥240 | Operating Temperature (℃) | -20~50 |
| Frequency Range(MHz) | 0.5~15 | HxW×D(mm) | 240×180×50 |
| Gain(dB) | 0~110 | Weight(kg) | 1.8 |
| Material Velocity(m/s) | 1000~9999 | | |
Standard delivery
Digital Ultrasonic Flaw Detector Main unit
2.5MHz-ф20 straight probe
4MHz-8x9mm, 60 degree angle probe
4A/9V power adapter
Probe connection cable (BNC to BNC)
Probe connection cable (BNC to LEMO)
USB2.0 –RS232 converter
Instruction manual
Calibration certificate
Carrying case
Additional accessories
Data managing software
Data managing cable RS232
Leather bag
All kinds of angle and straight probe, double crystal probe at any size with frequency
0.5—15MHz
Connection cable for probe LEMO and BNC
Lithium ion battery
Power adapter (4A/9V)
Test block V1
Test block V2
Test block DAC, ASME etc.
