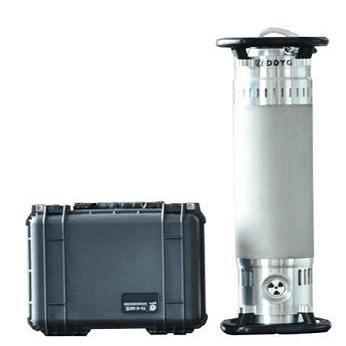

XXG-250GF 70-250KV X Ray Flaw Detector Maximum Penetration 60mm DR Flat High Frequency

Name: XXG250GF 70250KV X Ray Flaw Detector Maximum Penetration 60mm DR Flat High Frequency
Brand: HUATEC
Price: 36225 USD

Brand Name : HUATEC

Model Number : XXG-250GF

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : USD36225-USD40950/SET

Payment Terms : T/T, Western Union,Paypal, L/C

Supply Ability : 5 Sets/Month

Delivery Time : 20-30 working days after receipt of your payment

Packaging Details : Wooden box packaging

Focus size : 3.0×3.0

Radiation angle : 40°×40°

Maximum penetration（Fe） : 60mm (A3)

kV Adjustment range : 70～250 kV

mA Adjustment range : 0.5～3 mA(Stepping 0.1mA)

Maximum power : 900W

Leakage radiation value : maximum 5.0msv/h

Operating temperature : -20℃～+50℃

Storage temperature : -25℃～+70℃

Voltage : 85～264 VAC

Power frequency : 45～65 Hz

Contact Now

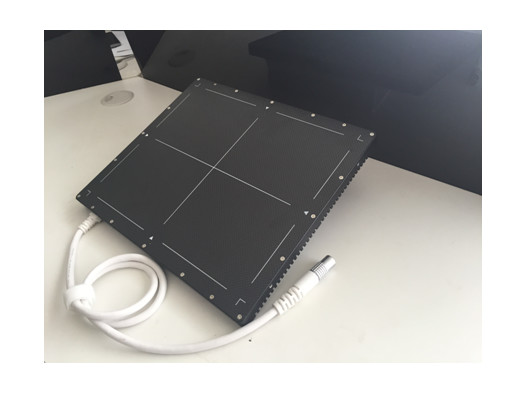

XXG-250GF 70-250KV Maximum penetration 60mm DR flat High frequency X-ray Flaw Detector

Main performance:

 Continuous exposure under the conditions of 35℃ 300kv/3mA, 250kv/3mA;

 Wide input voltage range to meet the power supply of various generators;

 Lightweight, strong penetration, stable performance;

 More suitable for use in harsh and humid environments;

 The operation interface is intuitive and easy to operate;

Main technical parameters

project name		XXG-250GF
X-ray generator	Weight	25kg
	Dimensions	Φ295×704 (Φ×L)
Controller	Weight	11kg
	Dimensions	410×228×300 (L×B×H)
Focus size		3.0×3.0
Radiation angle		40°×40°
Maximum penetration(Fe)		60mm (A3)
kV Adjustment range		70～250 kV
mA Adjustment range		0.5～3 mA(Stepping 0.1mA)
Maximum power		900W
Leakage radiation value		maximum 5.0msv/h
Operating temperature		-20℃～+50℃
Storage temperature		-25℃～+70℃
Voltage		85～264 VAC
Power frequency		45～65 Hz

XXG-250GF 70-250KV X Ray Flaw Detector Maximum Penetration 60mm DR Flat High Frequency
